1. Introduction

An earthquake on April 16, 2016 (M = 7.8) left about six 600 dead and collapsed several dozen structures, most of them reinforced concrete of between three and seven floors in cities as important as Manta and Portoviejo, where the famous zero zone was established (Aguiar et al., 2016). Following this, municipalities in much of Ecuador did studies to determine the type of soil on which they sit, determining spectra for the design and/or repair of structures and the degree of seismic vulnerability of existing structures.

Such studies are fully justified because the zero zone of the cities mentioned and others like Pedernales and Bahía de Caráquez, which appeared like war zones with very destructive bombing. Unfortunately, many buildings built during the 1980s in Pedernales, Manta, and Portoviejo were destroyed. Other buildings of reinforced concrete with medium height (about ten floors) withstood the quake but with considerable damage in Bahía de Caráquez and Manta (Aguiar, 2017). However, their owners decided to tear them down, e.g., the Salango and Fragata buildings.

Four years have passed since the earthquake and there are empty lots in the aforementioned cities where there were buildings that were apparently earthquake resistant. Thus, the question arises: Why did these buildings have considerable damage, especially those built five years or less before the 2016 earthquake?

There are many factors leading to poor seismic behavior of structures, one being the amplification of seismic waves as an effect of soil type. For example, in the sector known as La Puntilla, in Bahía de Caráquez, modern midrise buildings suffered extensive damage. These sat atop a type C soil profile (a suitable soil), according to the classification of the Ecuadorian Construction Standard NEC-15. There was strong amplification of the waves because the vibration period of the ground was ~0.9 s. This is a large value, which shows that it is not adequate to classify soils with the speed of the shear wave in the first 30 m (Vs30) or based on the number of blows in the standard penetration test (N60). It is also necessary to include the vibration period in the soil classification (Aguiar and Zambrano, 2018). Thus, the principal municipalities of Ecuador do well in conducting geophysical and geotechnical studies to classify soils from a seismic standpoint.

There are three fundamental factors for the performance of a structure during an earthquake: i) the soil (the more it is known the better); ii) the spectrum or spectra considered for design; iii) good structural performance.

The structures with poor seismic behavior during the 2016 earthquake were flexible, designed for low spectral order. Under these conditions, spectra obtained from the earthquake records were greater than those used in the design.

2. Works in Ambato

Microzonation studies were conducted in 2018 in the city of Ambato, in the center of Ecuador, which has strong commercial activity. The population in that year was ~180,000 (Aguiar and Rivas, 2018). Two methods were used to define the acceleration spectra of ground movement: probabilistic, in which geological faults are grouped into seismic sources, and deterministic, wherein the hazard for specific geological faults is evaluated.

In this article, the second method is followed. It might be asked why, if the work was already done in 2018, it was done again in 2020. The reason is that there is a new model of strong motion (Zhao et al., 2016), which the authors of the Ambato seismic microzonation study were unaware of when they did their work in the first half of 2018.

The working models in Zhao et al. (2016) are very interesting, because much of the database was obtained regarding cangahuas, which can be considered a rock like that in Ecuador. The previous model of Zhao et al. (2006) is very simple, because with a single equation one can obtain spectra and attenuation ratios of soil movement for three types of seismic sources, i.e., interphase, intraplate, and cortical.

The previous model of Zhao et al. (2006) has been used to compare the attenuation of soil movement from acceleration records of the 2016 Ecuador earthquake, so that use of the standard deviation gives reasonably good correlation.

For the deterministic calculation in the hazard study of 2018, the following strong motion equations were used: Campbell and Bozorgnia (2013), abbreviated C&B; Abrahamson et al. (2013), ASK; Choiu and Youngs (2014), CY.

In 2018, we worked with three models of strong motion, whereas now we are working with six, the three above and the additional ones of Zhao et al. (2016), Boore and Atkinson (2008), and Akkar et al. (2014). Moreover, Aguiar and Rivas (2018) did not determine the recurrence period of the three blind faults traversing Ambato. This was determined in the present work, using the methods of the characteristic earthquake and modified Gutenberg and Richter, complementing the earlier study.

3. Model of Zhao et al. (2016)

Two aspects are important in the model of Zhao et al. (2016). The first is incorporation of the soil period in the classification of seismic profiles, which was mentioned in the first section. The second has to do with the incorporation in the model of earthquakes associated with a volcano, an effect that is always important in a volcanic area. For the present study, the area is somewhat distant, so we considered minimum values recommended by the authors, but we nevertheless present four possible cases. Before this, we discuss the executive form of the Zhao et al. (2016) model, which includes two equations. One is for crustal earthquakes (source shallower than 25 km) and the other for upper mantle earthquakes (source deeper than 25 km). In our case, for the seismogenic characteristics of the three faults, we treated crustal earthquakes.

In the equations, subscript cr indicates that these are crustal earthquakes and subscript um refers to the upper mantle. With this clarification, the functions without the subscript are as follows: fm represents the source effect, a function of the magnitude, focal depth, and type of fault; g is the rate of geometric attenuation, a function of distance and magnitude, considering in the model equations for the near field (gN) and long distance (gcrL). e is the rate of anelastic attenuation, evcr is the rate of anelastic attenuation associated with the volcanic path (discussed below), and Acrcorresponds to site functions.

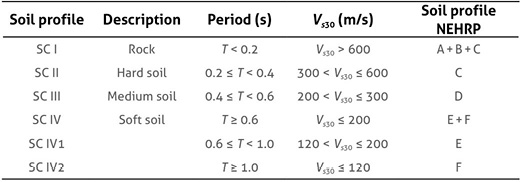

The soil classification in Zhao et al. (2016) is indicated in Table 1. In the first column is the nomenclature for soil types and in the last column, their similarity to the classification of the National Earthquake Hazards Reduction Program (NEHRP) (FEMA, 2015). The second column presents a description of the soil. The third column lists classifications according to the vibration period of the soil (which is interesting). The fourth shows the value of Vs30. It is important to recognize that the periods of the soils affect their classification, and that if there are soil periods > 0.6 s, one must be concerned with problems of seismic wave amplification.

In some places in the city of Guayaquil, there are soil periods in the order of 3 and 4 s. However, piles are used in building foundations in such a way that in relation to the soils of most of that city, the soils of La Puntilla of Bahía de Caráquez are suitable. Nonetheless, there were substantial amplifications of seismic waves, despite the placement of gravel piles in the reinforcement of some buildings, which stiffen the soil and decrease its period.

Thus, we have the lesson that it is inadequate to classify soil according to shear wave speed because of seismic wave amplification. Thus, it is necessary to know the vibration period of the soil, as has been done for Ambato.

The other important aspect of the Zhao et al. (2016) model is its consideration of volcanism, for which four cases are defined and shown in Figure 1: i) epicenter outside the volcanic zone (VZ) and station or point of interest within the VZ; ii) station and epicenter within the VZ; iii) epicenter in the VZ and station outside it; iv) station and epicenter outside the VZ but they cross it. In all cases, the distance xv is within the VZ.

4. Blind faults in city of Ambato

Very likely, 90% of the structural designers of the city of Ambato do not know that they are doing calculations for buildings on an active reverse fault and that an earthquake < 20 km deep is possible. This type of earthquake is known as impulsive and is characterized by a short duration but a dominant pulse that causes great damage to structures if they have not been properly designed.

In this regard, Ambato is built on blind geologic faults, i.e., they have no surface outcrop. Therefore, parameters such as fault type, geometry, and length have been obtained from a catalog of active faults (Eguez et al., 2003).

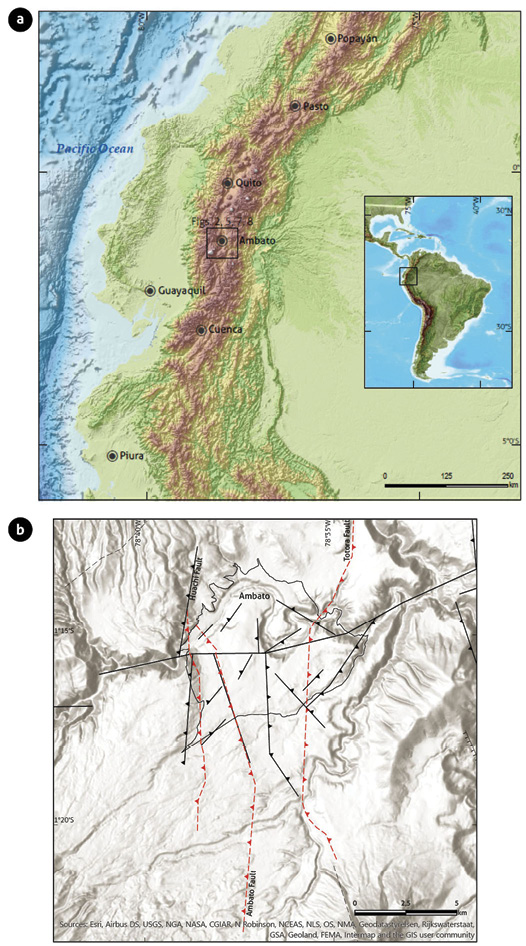

The urban area of the city of Ambato is traversed by three faults, which are shown in Figure 2. In the upper left of the figure there is Huachi, a reverse fault with length ~12.04 km. At right is Totoras, the longest fault. It is a lateral reverse fault of length 17.65 km. At bottom is Ambato, which is a reverse fault of 16.3 km length (Eguez et al., 2003; Chunga and Mulas, 2018).

It is important that the city of Ambato is in a valley, surrounded by mountains with steep slopes on which there is construction. Thus, there is a strong probability of landslides of large soil masses in an earthquake on one of the reverse faults. In addition, this construction mostly belongs to people with few economic resources.

Table 2 presents the faults of the study, indicating the maximum magnitude expected for each. These were found using Equations (3) and (4), proposed by Leonard (2010), and Equation (5), formulated by Wells and Coppersmith (1994) from the relationship between fault length (L), area (a), and width (W). The magnitude was found with these three proposed equations. Then, the average was obtained and rounded to the next larger value.

5. Recurrence period

The recurrence period is different from the return period, widely used in seismic regulations for the publication of design spectra. The recurrence period is the period between earthquakes of a certain magnitude. The return period is a statistical term that relates the useful life of a structure with the probability of exceeding parameters considered in soil motion.

The two periods are complementary because it is important to know, for example, the time (in years) that it takes for a magnitude 6.5 earthquake to occur on the Totoras fault. Obviously, this time corresponds to a model calculation and will therefore have some uncertainty, but in this way the structural designer will have an idea that will help him or her determine the safety to ascribe to a project.

Likewise, it is important that the structural designer know the probability of exceedance of the spectrum to be used, thereby obtaining spectra for a lower or higher probability of exceedance, combined with the recurrence period.

Again by way of example, in the analysis of the 100-year recurrence period associated with a geologic fault, it is necessary to work with an exceedance probability of < 10%, because the recurrence period of a geologic fault is short and the beginning time of that period is unknown.

The first model for calculating the recurrence period is called the characteristic earthquake method, which assumes that earthquakes occur with perfect periodicity. This is a simple model that equates the accumulated seismic moment of the fault with the seismic moment released during the maximum earthquake on fault M0 (Rivas, 2014).

The as yet undefined variables are: μ, stiffness modulus or shear

); the slip rate .u, area of the fault plane A; magnitude of the moment Mw.

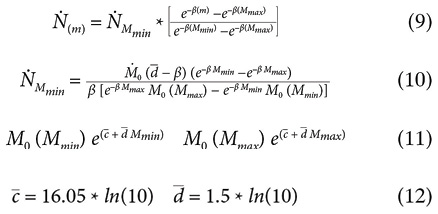

On the other hand, the Gutenberg and Richter (1944) model, modified by Cosentino et al. (1977), assumes that during the recurrence period there may be earthquakes of lesser magnitude, for the maximum quantity of which one wishes to calculate Tr. The calculation equations are as follows

Here, .N(m) is the accumulated rate of earthquakes with magnitude ≥ m. It is the accumulated rate of earthquakes of magnitude ≥ Mmin (the minimun magnitude). Mmax is the maximum magnitude considered. β is a parameter of fault seismicity. M0 (Mmin) is the minimum seismic moment and M0 (Mmax) the maximum seismic moment.

Once the considered magnitude has been obtained, we determine .N(m) and the non-annual accumulated rate of earthquakes ˆN(m), which is obtained by subtracting the accumulated annual rate of two consecutive quantities to ultimately determine the recurrence period, which is the inverse of the non-accumulated annual rate.

It is important to note that the accumulated rate of seismic moment is assumed to be released by earthquakes of different magnitudes and is between Mmin and Mmax, the latter determined by the size of the fault plane.

Considering the equation of Gutenberg and Richter (1944), it follows that

Here, N is the number of earthquakes of magnitude ≥ M and a and b are seismicity parameters of the fault. However, the Ambato, Huachi and Totoras faults are in source zone 6 of the model of Beauval et al. (2018), and for that zone (known as the Pallatanga fault) these parameters are: a = 2.8012, b = 0.73, which were adopted for the three blind faults in the city of Ambato. Equation (13) can then be written as follows.

n Equation (15) we have the parameter β, which appears in Equations (9) and (10). Finally are defined all calculation equations to determine the recurrence period in the two models. It only remains to mention that we took .u = 3.5 mm/yr, because Alvarado et al. (2014) stated that for a fault system, the rate of motion is between 3.0 and 4.0 mm/yr.

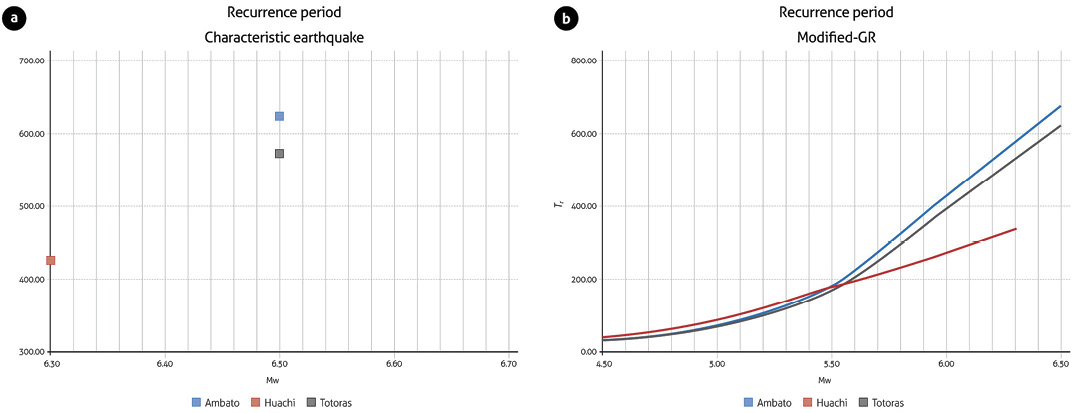

Figure 3 presents graphically the recurrence period results for each blind fault crossing Ambato. Figure 3a shows results of the characteristic earthquake method and Figure 3b those from Gutenberg and Richter.

Based on the results, we can say that for a magnitude of maximum moment = 6.5, associated with the blind faults of Ambato and Totoras, the period is ~600 years. For an earthquake of magnitude of maximum moment = 6.3, related to the Huachi fault, that period is ~400 years.

The city of Ambato was founded on August 24, 1534, and was destroyed by an earthquake on June 20, 1698, which was short-lived. We assume that this was associated with one of the blind faults in the city. Therefore, a second foundation of the city occurred in 1698, and since that time there have been no earthquakes that could be associated with the blind faults of Ambato.

The Riobamba earthquake of February 4, 1797 completely destroyed the ancient city of Riobamba and caused very severe damage in Ambato, but it was not related to the blind faults of the city. Something similar can be said of the earthquake on August 5, 1949, which also destroyed Ambato but whose epicenter was in Pelileo, distant from the city.

The faults portrayed in Figure 2 are in source zone 6, known as the Pallatanga fault from the model of Beauval et al. (2018). We cite this reference because we used the seismicity parameters a = 2.8012 and b = 0.73 from the classical model of Gutenberg and Richter logN = a − b M, whose values were found for source zone 6.

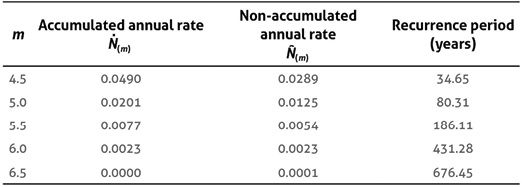

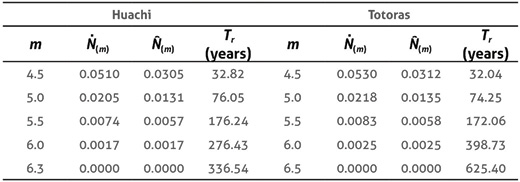

Table 3 lists the calculated recurrence periods associated with Ambato fault, and Table 4 the values for Huachi and Totoras faults.

The characteristic earthquake method assumes that earthquakes occur with perfect periodicity, obtaining a return period for a specific moment magnitude, whereas the Gutenberg and Richter model treats the probability that a fault produces earthquakes of different magnitudes with varying recurrence periods.

Given the above, 1698 can be considered the start year to determine roughly when the next earthquake associated with the Huachi, Ambato and Totoras faults will occur. Based on our results, an earthquake of magnitude 6.3, associated with Huachi, is expected between 80 and 100 years hence, and a magnitude 6.5 in ~80–700 years.

A major problem is that a sizeable part of the city would not be able to withstand a magnitude 6.3 quake with focal depth ~10 km. This is asserted based on the Study of Seismic Vulnerability for the city of Ambato, in which a seismic analysis of ~450 structures was carried out (Aguiar, 2018).

6. Geophysical and geotechnical studies

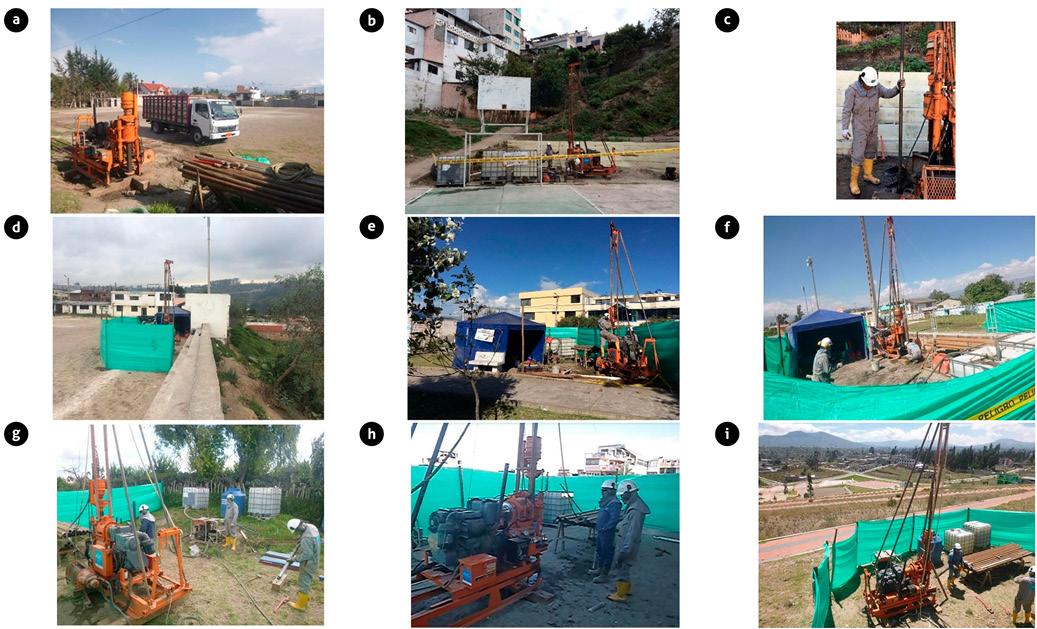

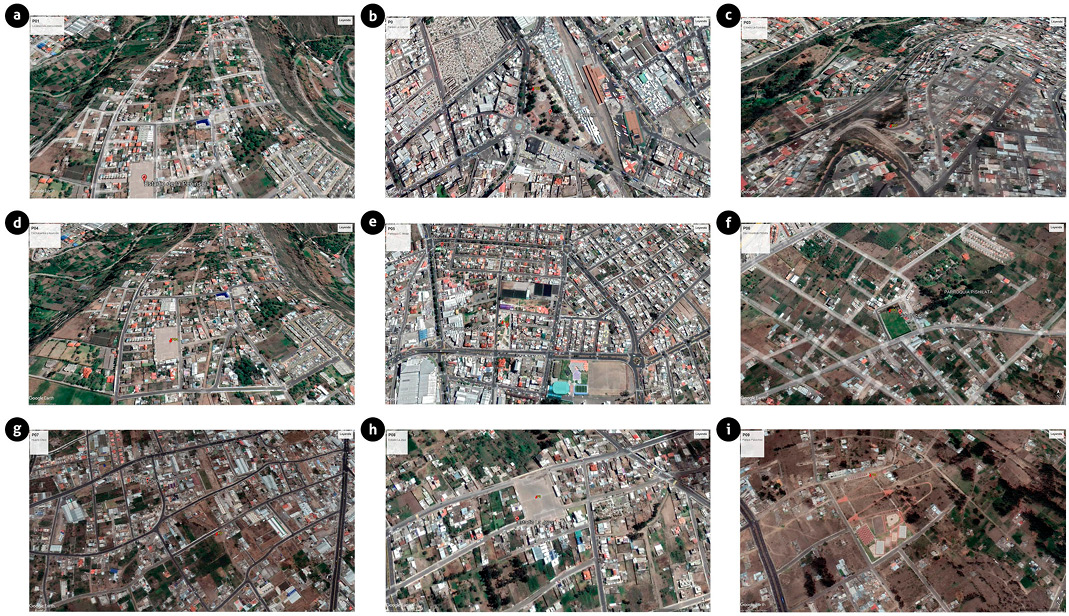

At nine sites in the urban area of the city of Ambato (indicated in Figure 4), data of the active source were obtained from an impact that generated waves recorded by geophones (active source) and environmental vibration (passive source, MASW). We applied the combined method to these two databases and determined the shear wave speed Vs, reaching at least 50 m depth, to obtain Vs in the first 30 meters (designated Vs30) as one of the parameters used for the soil classification (Aguiar and Rivas, 2018).

The period of soil vibration was obtained for the above locations using other measurement equipment (SARA), using environmental vibration and the Nakamura method.

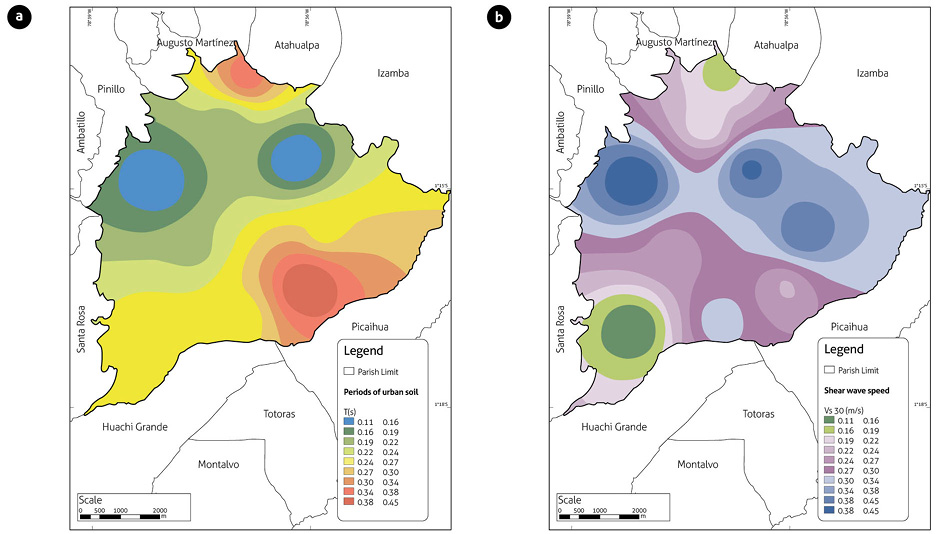

The periods of vibration found determined curves of the same period (Figure 5a), which varied between 0.11 and 0.45 s. Thus, from the point of view of seismic wave amplification, soils of the city of Ambato can be classified as favorable.

Furthermore, using the values of Vs30, we constructed the curve of equal shear wave speed values in the first 30 m (Figure 5b), which is generally between 300 to 450 m/s. These values correspond to favorable soil from a seismic perspective. There are very specific sites corresponding to creek fills that had Vs30 on the order of 120 m/s.

To classify soils seismically requires determination of the number of blows (N60) obtained with the standard penetration test (SPT), for which we conducted geotechnical studies at the same locations as the geophysical studies (Figure 6; also shown in the photos of Figure 4).

Drillings to 30-m depth did not reach the water table, which helped further validate that the soils of Ambato are resistant. In addition to finding the value of N60, during the test we obtained unaltered soil samples at some sites, and at other sites altered. With these, we performed triaxial laboratory tests to determine cohesion and the friction angle of the soil (Aguiar and Rivas, 2018).

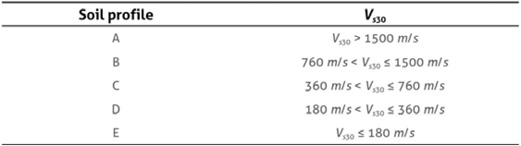

The soils of Ambato were classified following the NEC-15 classification method and using the following information: Vs30, period of vibration of the soil Ts, N60, values of cohesion c, angle of internal friction Φ, and ground shear. The results are presented in Figure 7.

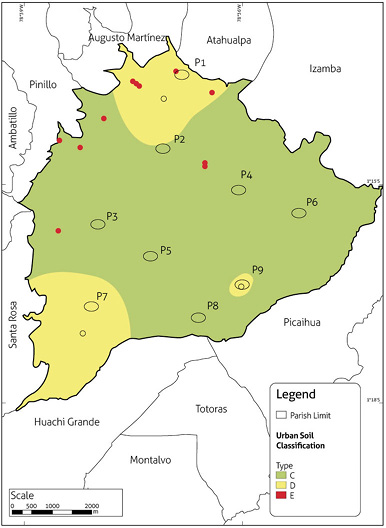

Figure 7 reveals that most of the soils of Ambato are of type C and D. As indicated, there are several parameters involved in the soil classification, but Vs30 is the most used in the models of strong motion, For this reason, the range of Vs30 according to soil type is indicated very briefly below, following the NEC-15 standard (Table 5).

7. Spectra of horizontal acceleration

To calculate the acceleration spectra with respect to the horizontal component of soil movement using the deterministic method, the urban area of the city of Ambato was divided into three grids with points separated by 500 m in both horizontal directions. Figure 8a shows the grid in a general way and Figure 8b the grid for soil profiles C, D and E.

The horizontal acceleration spectra were calculated for each soil profile, considering an earthquake of maximum magnitude on each of the blind faults (Huachi, Ambato and Totoras). The focus of this earthquake was located at the center of gravity of the fault. For each equation of strong motion, we found control spectra at all grid points, ultimately obtaining an average. These spectra are presented below and were determined using an EXCEL program developed for the purpose.

For a soil profile C, the calculation was done using Vs30 = 340 m/s. For a soil profile D, Vs30 = 300 m/s, and for a soil profile E, Vs30 = 180 m/s.

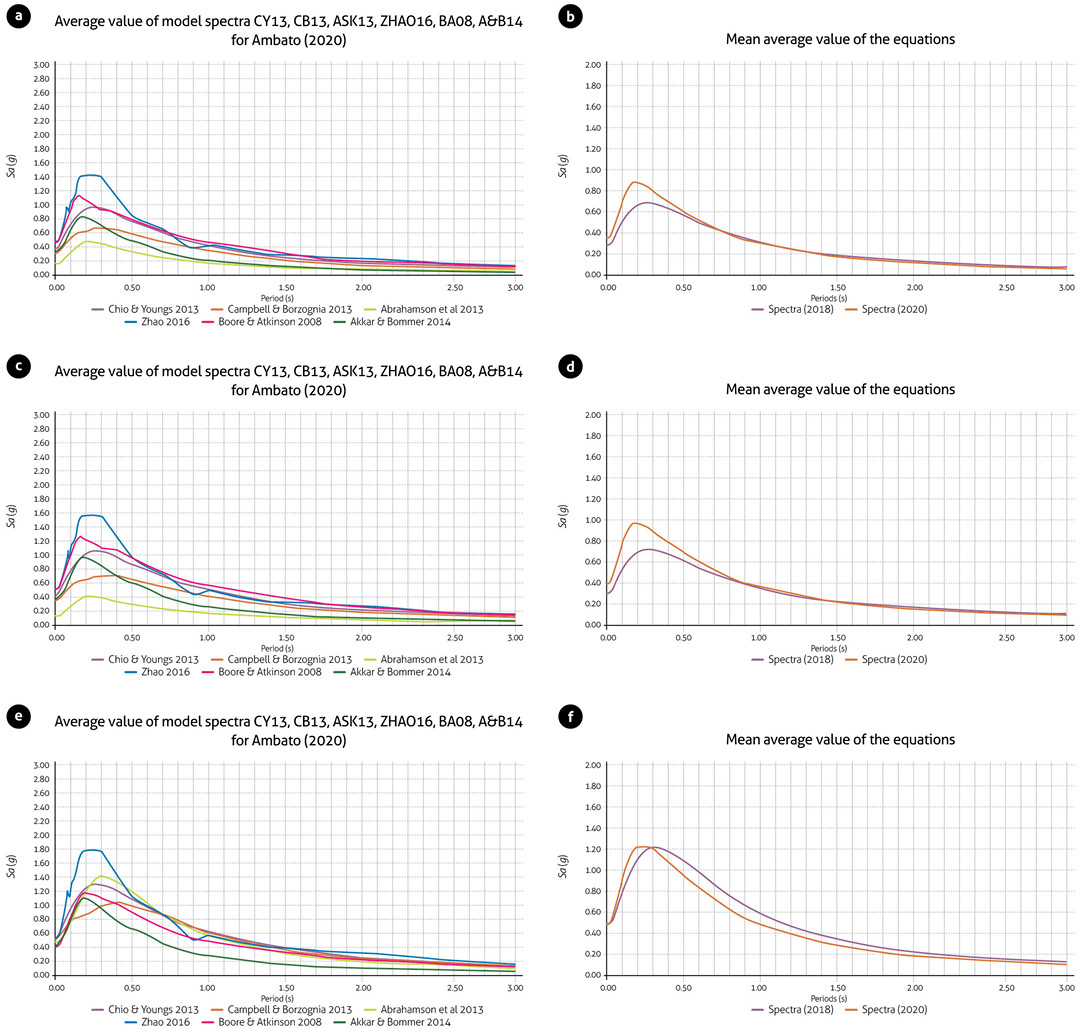

Figure 9a shows average spectra for an earthquake of maximum magnitude (M = 6.3) on the Huachi fault, for which the spectra were determined at each grid point and the average value was established. This was done for each strong motion equation. The model of Zhao et al. (2016) produced the largest spectral ordinates, in an area with short periods.

The spectra in Figure 9b correspond to the average of values from each of the six models, which is identified as “Spectra 2020”. The average spectra from three equations of strong motion used in the 2018 study are labeled “Spectra 2018”.

Figure 9c and d is analogous, but for a maximum-magnitude earthquake on the Ambato fault (M = 6.5). Finally, Figure 9e and f shows results for a maximum-magnitude earthquake (M = 6.5) on the Totoras fault. It is interesting to compare the spectra of Figures 9 b, d and f, which is done in the next section.

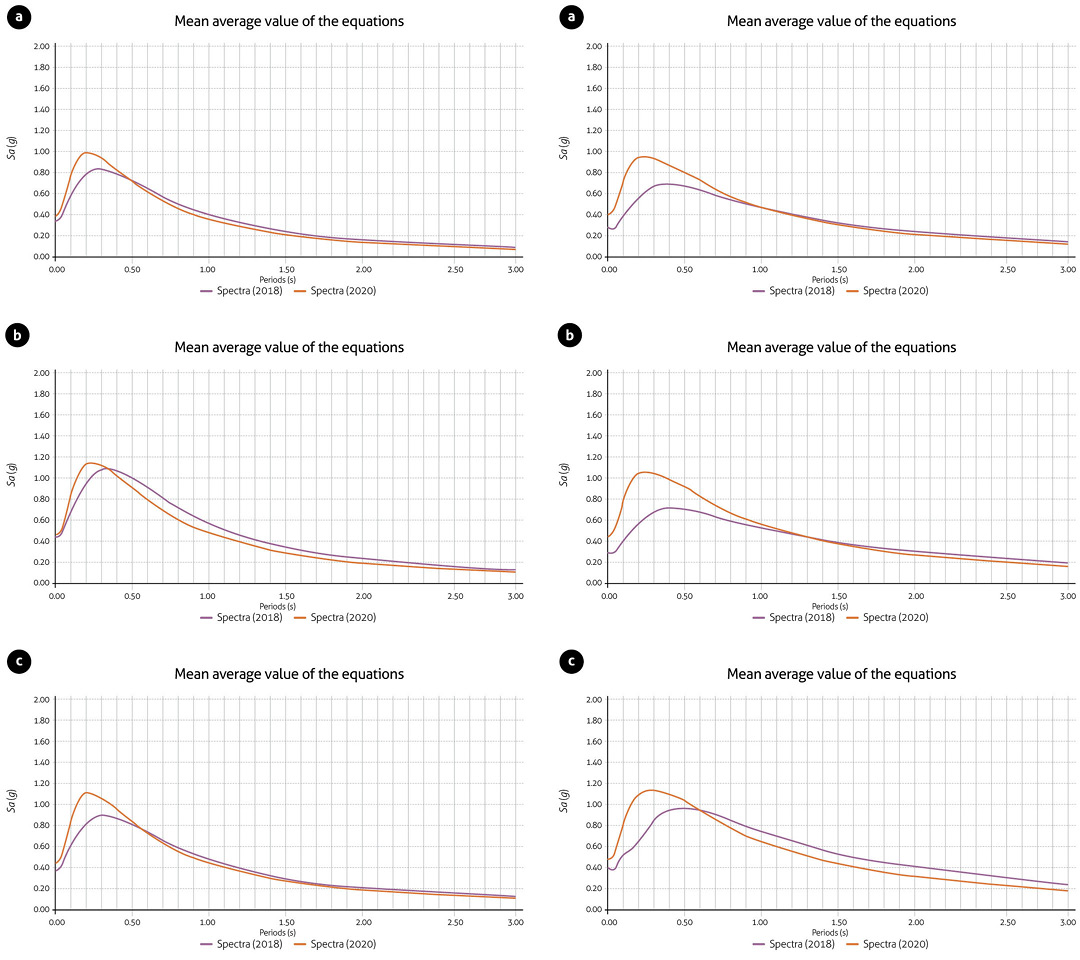

As with the type C soil profile, we proceeded with the type D and E soils in the city of Ambato, obtaining the average spectra in Figures 10 and 11 (considering an earthquake of maximum magnitude on each fault).

In general, Spectra 2020 has greater ordinates than Spectra 2018, but not in all periods. Indeed, for an earthquake on the Totoras fault (M = 6.5), the spectral ordinates of Spectra 2018 are slightly greater. However, for short periods, the spectral ordinates of Spectra 2020 are slightly greater than those of Spectra 2018, but for the remaining periods they are very similar.

8. Spectral envelopes

With the values of Spectra 2020 and Spectra 2018 we determined a spectral envelope from averages of seismic hazard studies in 2018 and 2020 for soil type C shown in Figure 9b, d and f. For soil type D we considered the spectra of Figure 10, and for type E those of Figure 11.

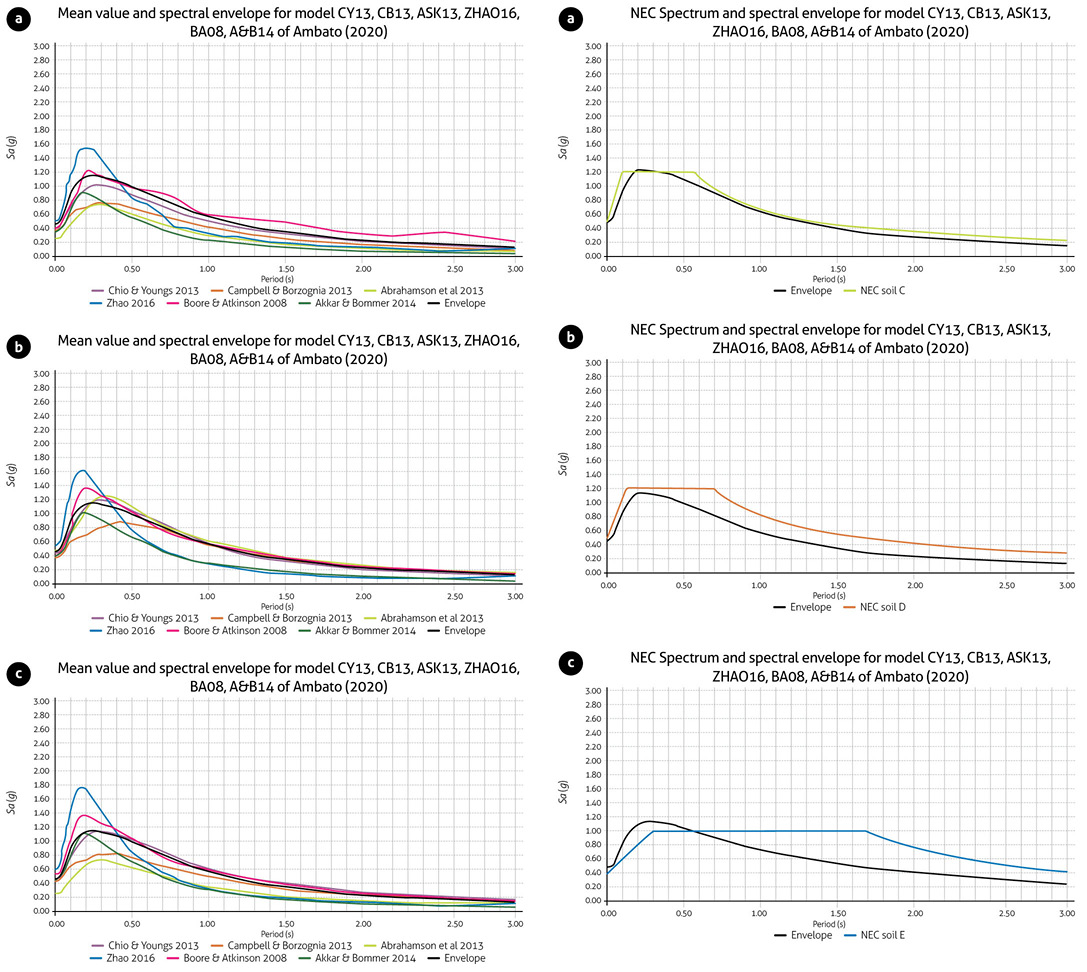

For the spectra associated with type D soil from each strong motion model, Figure 12 presents these values and the spectral envelope.

There are clearly periods in which the spectral ordinate found by a model is greater than the spectral envelope, but the values are < 10% of the probability of exceedance.

We then compared spectral envelopes with reports in the Ecuadoran Standard of Construction (NEC-15) for three soil profiles (Figure 13a) in a C seismic soil profile. There was a good approximation between the two.

Figure 13b compares the spectra for a soil profile D, which suggests a reduction in spectral shape for long periods. Finally, Figure 13c shows the spectra for a soil profile E, which differ the most with respect to the spectrum of NEC-15. Here, for the constant acceleration platform, the spectral ordinates are ~1.2 g.

The results of our study are very valuable and make an important contribution to comparing spectra obtained from the probabilistic method, in order to finally determine the shape of the spectra for the city of Ambato.

9. Comments and conclusions

After the 2016 earthquake of Pedernales (M = 7.8), which left much destruction and death in the provinces of the northern coast of Ecuador, some municipalities decided to conduct seismic hazard studies. Among these were Ambato, where it was decided to do a seismic microzoning of the urban area in 2018. In these studies, two methods (probabilistic and deterministic) were used to find the spectra vs. the horizontal component of ground movement. For the last method, values were acquired from three models of strong motion, which have been called in this article Spectra 2018.

In the 2018 study, geophysical and geotechnical studies were done in different places of the city, at least one in each parish, to determine the vibration period of the soil, speed of the shear wave in the first 30 m, number of blows in the SPT, and other parameters from which the soils were classified from a seismic perspective.

For each seismic soil profile, the 2018 Spectra were found by considering a seismic event of maximum magnitude on each of three blind faults traversing the city. In this endeavor, the recurrence period of an earthquake of maximum magnitude was first determined for each fault, using the two aforementioned methods. Results were analyzed in relation to the historical seismicity of the city, discovering that an earthquake with magnitude 6.3 can occur in the next 80 to 100 years, and one of magnitude 6.5 during the next 300 years.

In the same way, spectra were obtained using the deterministic method, but considering six models with strong motion equations, among them that of Zhao et al. (2016). These were obtained from Spectra 2020, which are very similar to those of 2018. Therefore, we decided to consider as a contribution to the studies of 2018 the spectral envelopes, the same that were compared to the spectra that would be obtained in each soil seismic profile for earthquakes of maximum magnitude on each fault, and were compared with the spectra reported in the Ecuadorian Standard of Construction (NEC-15). There was strong correlation for soil profile C, whereas for profile D, there was a reduction of spectral ordinates for long periods. For soil profile E, it is suggested to increase the spectrum plateau to 1.2 g.
