INTRODUCTION

Since its opening in 1914, the Panama Canal has served as a freshwater transoceanic passageway connecting the Atlantic and the Pacific Oceans (Bennett & Hammond, 1915). The Panama Water Lock System helps the vessels entering to the canal are lifted to the higher level and later dropped down to the sea level at the other end of the canal- Today, the Canal has 5 sets of locks, two of which were recently inaugurated in 2016. On the Pacific side there are three locks. The original Miraflores and Pedro Miguel locks occurred in sequence while the new Cocoli Lock is in parallel with them (Fig. 1). Miraflores locks has 2 sequential chambers, and Pedro Miguel has one in each direction. On the Atlantic side the Gatun locks has 3 chambers in sequence. Each one of the old chambers is a box made of reinforced concrete measuring 304.8 m (1000 ft) long by 33.5 w (110 ft) with an average depth of 26 meters (40 ft) (ACP, 2020). This mechanism has operated for 100 years without appreciable increases in the salinity of Gatun Lake, and has largely prevented the migration of marine species from one ocean to the other. We focused on the diversity reported in the original locks since the new locks haven´t yet been surveyed.

Salinity varies among the chambers thus influencing the diversity found in each one. The first, lower chamber of the Miraflores locks that connects directly to the Pacific Ocean, has a salinity of 26 ‰ (Menzies, 1968). To transit ships in this chamber, it has to be filled with fresh water from the upper chamber which has a salinity of 3 ‰ (Menzies, 1968). To lift ships in the upper chamber, it must be filled with fresh water from Miraflores Lake which has a salinity of 0 – 1 ‰ (Menzies, 1968; Jones & Dawson, 1973). Vessels in the single chamber of the Pedro Miguel Locks meet water salinity which equalizes with the Gatun Lake. The salinity of Pedro Miguel chambers and Gatun Lake is 0 ‰ (Jones & Rützler, 1975). On the Caribbean side, the Gatun Locks also differ in salinity, ranging 0 – 1 ‰, 10 – 16 ‰ and 18 – 20 ‰ in the upper, middle, and lower chambers, respectively (Hildenbrand, 1939).

Several authors have made observations about the marine invertebrates found in the Panama Canal Locks and surrounding areas (McCosker & Dawson, 1975; Jones & Rützler, 1975; Abele, & Kim, 1989). Some dated to the early years of the Canal (Hildebrand, 1939), while others focus on the biology of target species (Roche & Torchin, 2007). Several environmental technical reports have documented the benthic mollusks in soft sediments from the Miraflores and Gatun Lake (Toole, 1985; Garcés, & García, 2003a, 2003b, 2004). Hildenbrand (1939) was the first to report 12 species of mollusks occurring inside the lock’s chambers. Rosewater (1975a) reported 10 species in Gatun Locks. In the same year, he reported 74 species of mollusks from the entire lock systems (Gatun, Miraflores and Pedro Miguel), collected from 1971 to 1975 (Rosewater, 1975b). Many authors have done additional observations of the mollusks from the lock chambers (McCosker & Dawson, 1975; Jones & Rützler, 1975; Abele, & Kim, 1989). However, in many cases, samples have been collected and vouchered in museums, but the resulting publications provided summary numbers, rather than giving species names.

In this paper, we present a checklist of the diversity of mollusks registered from the Pedro Miguel and Miraflores locks, 44 years after the major mollusk survey made by Rosewater (1975b). We also provide photographs of the mollusk species most recently collected inside these 2 locks.

MATERIALS AND METHODS

Specimens were collected in the Miraflores Locks (8.995114, -79.589696) in July 2019 and in the Pedro Miguel Locks (9.016931, -79.612327) on September 2019 (Fig. 1). Each set of locks is drained every five years for maintenance. During the 2019 maintenance event we sampled the lower east chamber of Miraflores Lock three days after the chamber was totally drained. We collected on the left side of the chamber over the course of three hours. At the Pedro Miguel Locks we collected for 2 hours around the east chamber, a few hours after the chamber was drained.

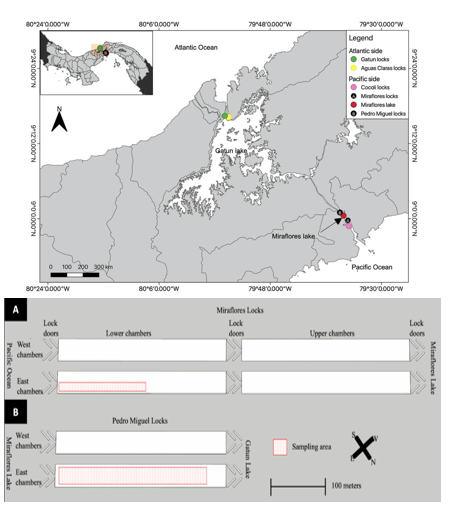

Fig. 1 Map of the sampling areas in the Miraflores Locks (A) and Pedro Miguel Locks (B).

Samples were handpicked and initially stored in vials with water from the lock chamber until they were processed later the same day. In the laboratory the soft tissue was removed, and shells were gently dried and stored in clear plastic shell cases. The shells were identified with references to the local fauna (Keen 1958; Coan & Valentich-Scott, 2012; Tejera et al., 2016). One representative shell of each species was photographed in standard view with a camera Olympus OM-D EM-5 Mark II with a 60mm f2.8 macro lens, the photos were stacked and arranged in Photoshop CC 2019 (Fig. 2,3). Vouchers were deposited in the Malacology Museum of the University of Panama (MUMAUP). Specimens were collected with the authorization of the Panama Canal Authority (ACP) and with the permission of the Ministry of Environment (Mi Ambiente) under the collection permits SE/AP-26-19.

We compiled literature on the species that have previously been reported in the locks, and records of observations in our curated database of the Marine Biodiversity of Panama (http://www.invertebase.org/stri/index.php). The species which contributes to the diversity reports by Rosewater, (1975b) were obtained from the database of the National Museum of Natural History (NMNH), since the original publication did not include the list of species collected, only the total of them. The total list of species was checked for distribution and synonyms by using the World Register of Marine Species (WORMS) database online, then registered as appropriate.

List of museum codes:

FMNH = The Field Museum of Natural History, Invertebrate Zoology Collections (USA)

IZ-YPM = Yale Peabody Museum of Natural History

MCZ = Museum of Comparative Zoology, Harvard University (USA)

NL = Naturalis Biodiversity Center – Mollusca, (Netherlands)

NMNH = National Museum of Natural History, Smithsonian Institution, Invertebrate Zoology Collections (USA)

UF = Florida Museum of Natural History, Invertebrate Zoology (USA)

UMMZ = University of Michigan Museum of Zoology (USA)

RESULTS

A total of 41 gastropods belonging to 13 species from eight families were collected (Table 1, Fig. 2). The two locks had distinct gastropod faunas, with Clypeolum latissimum being the only species found at the Pedro Miguel lock, while the other 12 species were found at the Miraflores Lock. Gastropods were located inside crevices in the walls or below the sparse rocky rubble on the lock´s floor. Twelve bivalves were collected belonging to two families and four species (Table 1, Fig. 3). Mytilopsis sallei was the only bivalve species found at Pedro Miguel and it was scarcely found inside crevices or holes in the lock walls. Meanwhile the floor from the Miraflores Chamber was carpeted with three species of bivalves: Brachidontes playasensis, Mytella strigata and M. guyanensis.

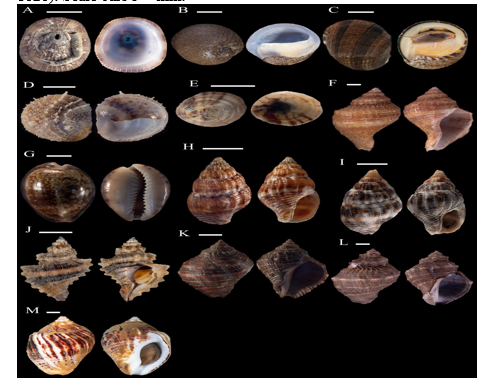

Fig. 2 Gastropod species from the Miraflores and Pedro Miguel locks in the Panama Canal. A) Diodora saturnalis (Carpenter, 1864), B) Clypeolum latissimum (Broderip, 1833), C) Nerita scabricosta Lamarck, 1822, D) Bostrycapulus calyptraeiformis (Deshayes, 1830), E) unidentified sample, F) Monoplex wiegmanni (Anton, 1838), G) Pseudozonaria arabicula (Lamarck, 1810), H) Anachis lyrata (G. B. Sowerby I, 1832), I) Anachis varia (G. B. Sowerby I, 1832), J) Eupleura nitida (Broderip, 1833), K) Stramonita biserialis (Blainville, 1832), L) Thaisella kiosquiformis (Duclos, 1832), M) Triumphis distorta (Wood, 1828). Scale bars 5 = mm.

Fig. 4 Venn diagram summarizing the number of shared species between each one of the systems of lock chambers.

A total of 592 records of mollusks were found in the literature and online databases from museum collections. These records are exclusively from samples collected inside the original lock systems (Gatun, Pedro Miguel and Miraflores). These records represent 150 species, from which 55 are bivalves, 4 cephalopods, 88 gastropods and 3 polyplacophorans. Names of 36 species were updated based on the taxonomy in WORMS. Comparisons with geographic ranges showed that 7 species were away from their natural population distributions (Table 1), suggesting either misidentifications or possible introduction of these species. Miraflores has the greatest number of species (111) followed by Gatun (45) and finally Pedro Miguel (14). Only 13 species of mollusks have been reported to occur in both locks Miraflores and Gatun and two species (Mytilopsis sallei and Melanoides tuberculata) in all 3 locks (Figure 4). From the 111 species reported for Miraflores Lock´s chambers, only 15 were found, but our collecting effort was minimal, and spatially limited to one part of the locks and by the time available for sampling.

Table 1. Mollusca diversity inside the lock chambers of the Panama Canal. G = Gatun locks, M = Miraflores locks, PM = Pedro Miguel locks, + = new reports for the locks (NL), - = new reports for the country (NC), # = species out of their natural distribution range (OD), * = species name updated, bold = samples collected in 2019 and illustrated in Fig. 2 and Fig. 3.

DISCUSSION

The diversity of Mollusca in the Gulf of Panama was entirely reviewed recently by Keen (1958). Most recently efforts have been made to document additional biodiversity in localized sites (Córdoba et al, 2010; Tejera et al, 2016) and samples from Panama are often included in taxon-specific revisions (e.g., Collin, 2005; Reid et al, 2010; deMaintenon, 2014; Raines, 2020). With each biodiversity study, new species and/or new reports are added to the Mollusca fauna in Panama. In this review of the fauna of the Panama Canal locks, we recorded two new species for the country: Mytella strigata and Brachidontes playasensis. These two species are native to the Eastern Pacific Ocean (Keen, 1958; Coan & Valentich-Scott, 2012) and they have been reported for Colombia (Puyana et al, 2012), and Mexico (Lopez-Rojas et al, 2017), so its presence in Panama should be expected.

The salinity of each one of the locks´s chambers shapes the diversity of species in that chamber (Figure 4). There is very little overlap of the fauna in each set of locks; and very few species occur in multiple locks. In the lower chambers of the Miraflores Locks, the high salinity and frequent water exchange promotes the arrival of larvae and survival of settlers from the diverse mollusk’s fauna of the Bay of Panama (Keen, 1958; Menzies, 1968).

After 40 years, since the last two major mollusk censuses in the locks (Hildenbrand, 1939; Rosewater, 1975b), we observed lower diversity and some new records for the locks. According to Rosewater (1975b), Mytilopsis sallei was a bivalve commonly found in all the lock chambers. We only found this species at the Pedro Miguel Locks, but they were not entirely covering the lock walls as stated by Hildebrand (1939). Instead, were scarcely found inside of crevices in the lock´s walls. Historically, M. sallei has been one of the two species of mollusk that was found in the three locks systems. Due to its high tolerance to changes in salinity, temperature and its fast growth and reproductive rate (Morton, 1981) M. sallei has invaded many sites in Australia (William et al, 2000), Malaysia and Singapore (Tan & Morton, 2006). Outside the lock´s chambers, this species can be found covering hard substrates around the Gatun Lake (M.M. pers. Obs.). It is likely that M. sallei was found at the upper chambers in Miraflores Locks, where the salinity is 3 ‰ (Menzies, 1968), and where we did not collect samples. In the upper chambers M. sallei would not be released from competition for space with species of Brachidontes that were commonly found at the lower chamber and which are less tolerant to low salinities (Sará et al, 2008). Rosewater (1975b) found the freshwater snail Melanoides tuberculata, an invasive species capable of surviving at salinities up to 21.56‰ (Farani et al, 2015), in the three sets of locks, but we did not find this species.

Overall, each set of locks chambers has different communities of mollusks reflecting the differences in salinity generated by the constant exchange of ocean water from the lower chambers of the Miraflores and Gatun locks. If the salinity changes it is likely that the distribution of the more euryhaline species may expand to include more locks.

CONCLUSION

We provide an annotated checklist of 150 species of mollusks found at the Miraflores, Pedro Miguel and Gatun Locks compiled over 80 years of observations in the Panama Canal. We added six new records (Brachidontes playasensis, Mytella strigata, Anachis lyrata, Pseudozonaria arabicula, Diodora saturnalis, Nerita scabricosta, and an unidentified Patellogastropoda) from our observations of the Miraflores Locks. We hope that this compilation will facilitate the detection of new or introduced species in the future.

ACKNOWLEDGMENTS

We thank the Panama Canal Authority (ACP) for providing permission and logistic support for the field campaign. We thank Isis Ochoa, Lourdes Vargas and Tania Romero for their help in the field and to Tauana Cunha, Maria Sanchez, Victor Lara and Alexandra De Leon for their helpful comments to the manuscript. We appreciate the help provided of Marta DE Maintenon with the identification of the two Anachis species.

Referencias

Abele, L.G. & Kim, W. 1989. The Decapod Crustaceans of the Panama Canal. Smithsonian Contributions to Zoology. 482:1-50.

ACP. 2020. This is the Canal, last update 22-Feb-2013 in http://www.pancanal.com/eng/acp/asi-es-el-canal.html. Accessed on June 5th, 2020.

Bennett, I.E. & Hammond, J.H. 1915. History of the Panama Canal: Its construction and builders. Washington, DC: Historical Publishing Company.

Coan, E.V. & Valentich-Scott, P. 2012. Bivalve seashells of tropical west America (Vol. 1258). Santa Barbara, CA: Santa Barbara Museum of Natural History.

Collin, R. 2005. Development, phylogeny, and taxonomy of Bostrycapulus (Caenogastropoda: Calyptraeidae), an ancient cryptic radiation. Zoological Journal of the Linnean Society, 144(1), 75-101.

Córdoba, D.E., Avilés, M.C., Valdés, I. & Días, M. 2010. Diversidad de moluscos (Bivalvos y Gasterópodos), que sirven como fuente de alimento en isla Colón, provincia de Bocas del Toro, Panamá. Tecnociencia. 12(1): 23-33.

deMaintenon, M.J. 2014. Taxonomic revision of the species of Parvanachis Radwin, 1968 (Gastropoda: Columbellidae) from the Gulf of Panama. Zootaxa, 3753(3), 201-225.

Farani, G.L., Nogueira, M.M., Johnsson, R. & Neves, E. 2015. The salt tolerance of the freshwater snail Melanoides tuberculata (Mollusca, Gastropoda), a bioinvader gastropod. Pan-American Journal of Aquatic Sciences. 10(3): 212-221.

Garcés, B.H.A. & García, R.J. 2003a. Caracterizacion de la infauna bentónica asociada al proyecto de profundizacion del cauce de navegación del Canal de Panamá. Tercer informe de avance. CCML para ACP. Unidad de Calidad del Agua, Balboa, Panamá, 26 p.

B.H.A. & García, R.J. 2003b. Caracterizacion de la infauna bentónica asociada al proyecto de profundizacion del cauce de navegación del Canal de Panamá. Cuarto informe de avance. CCML para ACP. Unidad de Calidad del Agua, Balboa, Panamá, 26 p.

Garcés, B.H.A. & García, R.J 2004. Colecta y análisis de muestras biológicas de los lagos Gatún y Miraflores. No. 3: Bentos. Centro de Ciencias del Mar y Limnología (CCML) FACNET, Universidad de Panamá

Hildebrand, S. F. (1939). The Panama Canal as a passageway for fishes, with lists and remarks on the fishes and invertebrates. Zoologica. 24(3): 15-45.

Jones, M. L., & Dawson, C. E. (1973). Salinity-temperature profiles in the Panama Canal locks. Marine Biology, 21(2), 86-90.

Jones, M.L. & Rützler, K. 1975. Invertebrates of the upper chamber, Gatún Locks, Panama Canal, with emphasis on Trochospongilla leidii (Porifera). Marine Biology. 33(1): 57-66.

Keen, A.M. 1958. Seashells of tropical west America: marine mollusks from Lower California to Columbia. Stanford University Press.

Lopez-Rojas, I.V., Flores-Garza, R., Flores-Rodriguez, P., Torreblanca-Ramirez, C. & Garcia-Ibanez, S. 2017. The Bivalvia Class of rocky sites in Priority Marine Regions of Guerrero, Mexico: species richness, abundance, and distribution. Hidrobiologica. 27(1): 69-86.

McCosker, J.E. & Dawson, C.E. 1975. Biotic passage through the Panama Canal, with particular reference to fishes. Marine Biology. 30: 343-351.

Menzies, R.J. 1968. Transport of marine life between oceans through the Panama Canal. Nature 220: 802-3.

Morton, B. 1981. The biology and functional morphology of Mytilopsis sallei (Recluz)(Bivalvia: Dreissenacea) fouling Visakhapatnam Harbour, Andhra Pradesh, India. Journal of Molluscan Studies. 47(1): 25-42.

Puyana, M., Prato, J. & Díaz, J.M. 2012. Mytella charruana (d'Orbigny)(Mollusca: Bivalvia: Mytilidae) in Cartagena Bay, Colombia. Boletín de Investigaciones Marinas y Costeras-INVEMAR. 41(1): 213-217.

Raines, B.K. 2020. A Rosetta Stone for eastern Pacific Caecidae (Gastropoda: Caenogastropoda). Zootaxa, 4827(1), 1-146.

Reid, D. G., Dyal, P., & Williams, S. T. 2010. Global diversification of mangrove fauna: a molecular phylogeny of Littoraria (Gastropoda: Littorinidae). Molecular Phylogenetics and Evolution, 55(1), 185-201.

Roche, D.G. & Torchin, M.E. 2007. Established population of the North American Harris mud crab, Rhithropanopeus harrisii (Gould 1841) (Crustacea: Brachyura: Xanthidae) in the Panama Canal. Aquatic Invasions. 2(3): 155-161.

Rosewater, J. 1975a. Mollusks of Gatun Locks, Panama Canal. Bull. Am. Malacological Union. 1974: 42-43.

Rosewater, J. 1975b. Some results of the national museum of natural history Smithsonian tropical research institute survey of Panama 1971-1075. Bull. Am. Malacol. 1975: 48-50.

Sarà, G., Romano, C., Widdows, J., & Staff, F. J. (2008). Effect of salinity and temperature on feeding physiology and scope for growth of an invasive species (Brachidontes pharaonis -Mollusca: Bivalvia) within the Mediterranean Sea. Journal of Experimental Marine Biology and Ecology, 363(1-2), 130-136.

Tan, K.S. & Morton, B. 2006. The invasive caribbean bivalve Mytilopsis sallei (Dreissenidae) introduced to Singapore and Johor Bahru, Malaysia. Raffles Bulletin of Zoology. 54(2): 429-434.

Tejera, N., Cordoba, D. & Avilez, M. 2016. Moluscos intermareales del distrito de Aguadulce: guía de campo. Imprenta Color Group Internacional Panama. 216 paginas

Toole, T.W. 1985. Results of Benthic Macroinvertebrate sample analysis on Gatun Lake (PCZ) Samples collected in March-May 1985. Laboratory results report. Appendix I, s.n. En PCC. 1987. Environmental Report: Panama Canal Gaillard Cut widening feasibility study. Vol I & II (Appendix). Panama Canal Commission, Panama. 94 p.

Willan, R.C., Russell, B.C., Murfet, N.B., Moore, K.L., McEnnulty, F.R., Horner, S.K. ... & Bourke, S.T. 2000. Outbreak of Mytilopsis sallei (Recluz, 1849) (Bivalvia: Dreissenidae) in Australia. Molluscan Research. 20(2): 25-30.

WoRMS Editorial Board. 2020. World Register of Marine Species. Available from https://www.marinespecies.org at VLIZ. Accessed 2020-09-15. doi:10.14284/170
